凿岩钻头是专为破碎和穿透坚硬岩层的钻孔作业而设计的专用工具。它们通常用于采矿、建筑、石油和天然气勘探以及采石等行业。这些钻头与钻杆和凿岩机配合使用，可有效地进行凿岩。其设计和材料特性确保其能够承受极端条件，在严苛的环境中提供可靠高效的性能。
岩石钻头的类型
我们提供各种类型的凿岩钻头，包括十字钻头和球齿钻头。其中，球齿钻头又包括螺纹球齿钻头、回缩球齿钻头和扩孔球齿钻头。
| 类型 | 简介 | 应用 | 直径 |

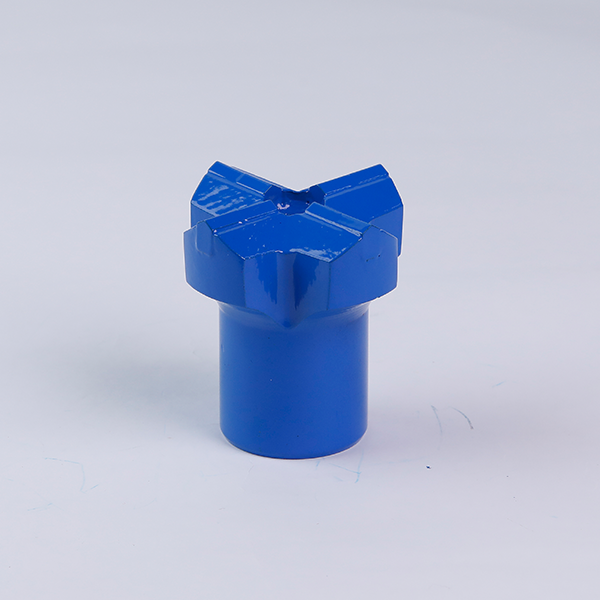

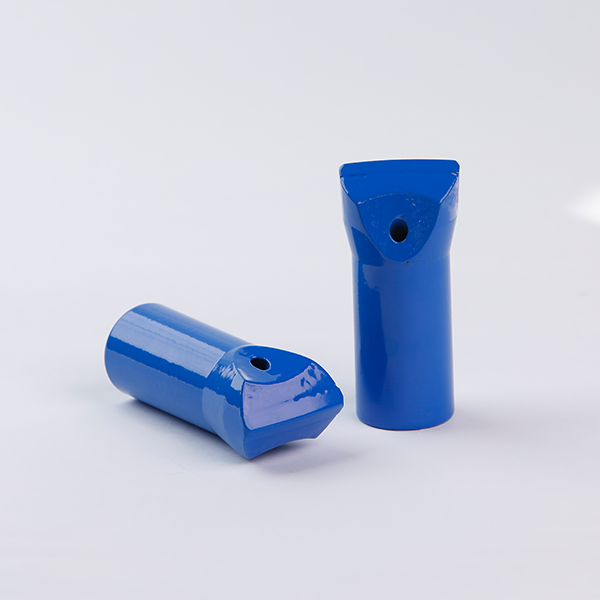

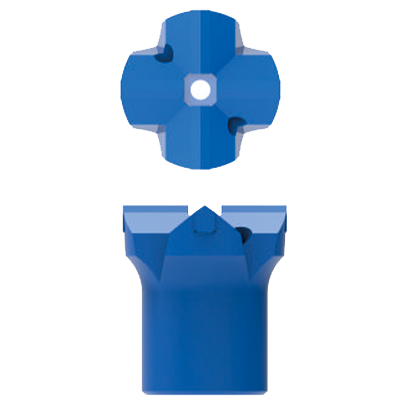

十字钻头 | 该设计通常采用多个十字形排列的十字刀片，以提高其在钻孔过程中破碎岩石的效率。 | 它主要用于钻穿裂缝岩石和磨蚀性地层，例如石灰岩、花岗岩和大理石。它尤其适用于高冲击力的凿岩机。 | 34毫米-65毫米 |

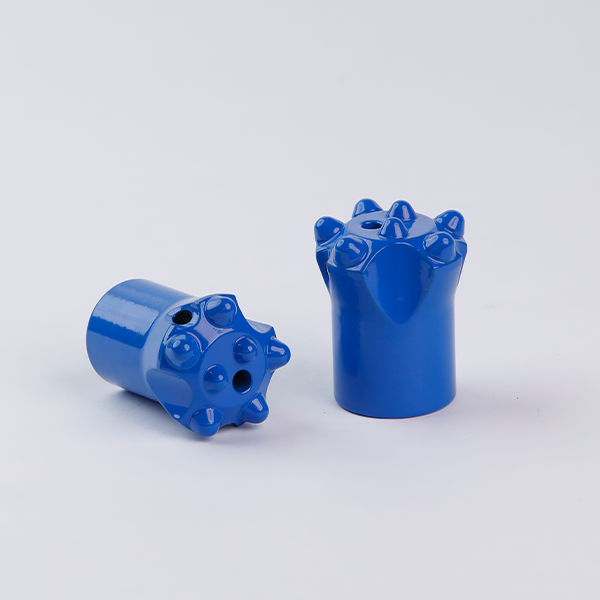

按钮钻头 | 这款钻头的钻头主体上巧妙地排列着硬质合金齿。这种设计可以实现多点破岩，从而提高效率并消除破岩作业中常见的盲区。此外，它还能防止岩石碎屑再次破碎。 | 钻机使用各种直径的螺纹球齿钻头来处理不同类型的硬脆岩层。 | 38毫米-150毫米 |
| 按钮钻头类型 | 简介 | 应用 | 直径 |

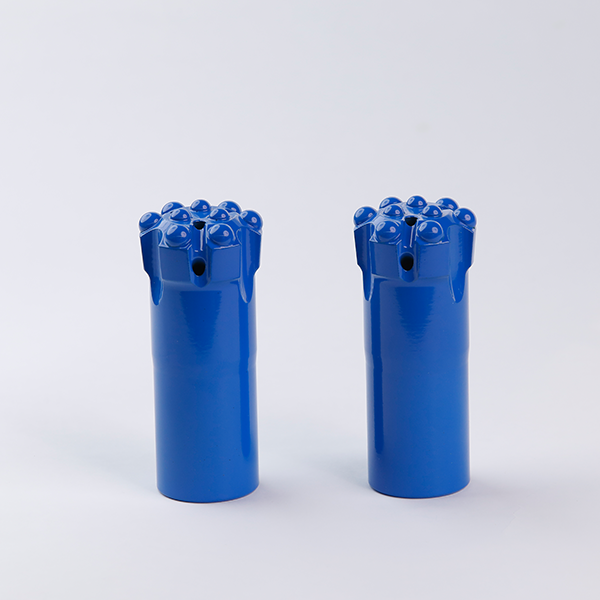

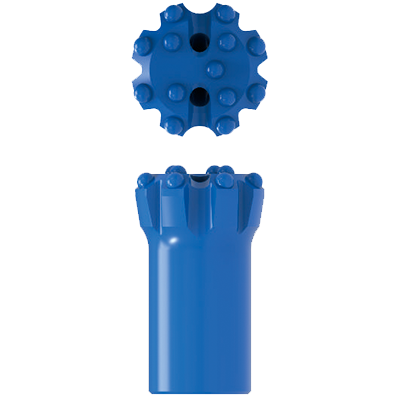

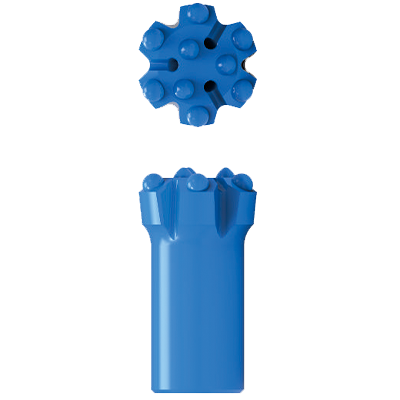

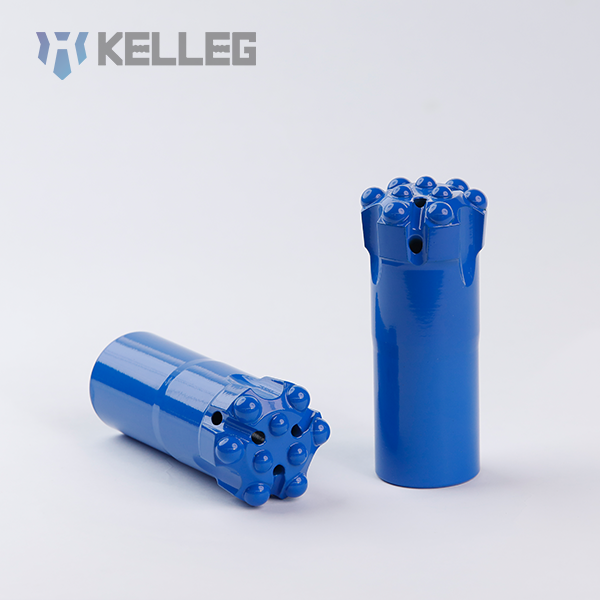

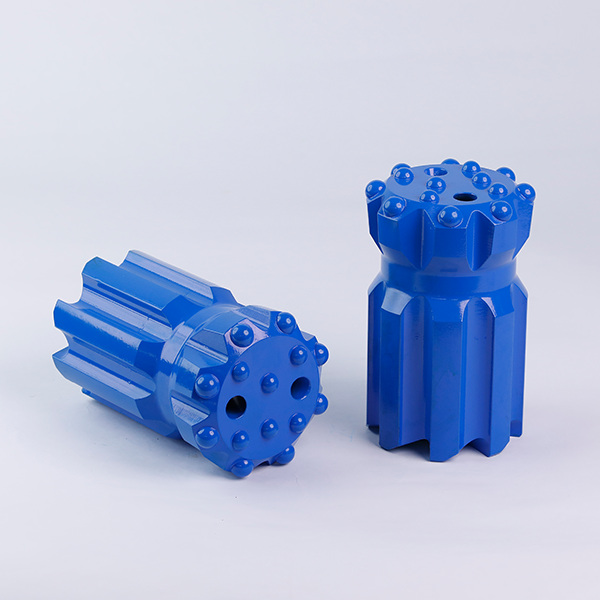

螺纹球齿钻头 | 凿岩钻头与螺纹钻杆连接，传递凿岩机的冲击力和旋转扭矩，以破碎岩石。 | 这款凿岩钻头适用于一般地质条件下的钻孔。其设计简洁，硬质合金齿块分布均匀，适用于各种硬度的岩石。 | 48毫米-152毫米 |

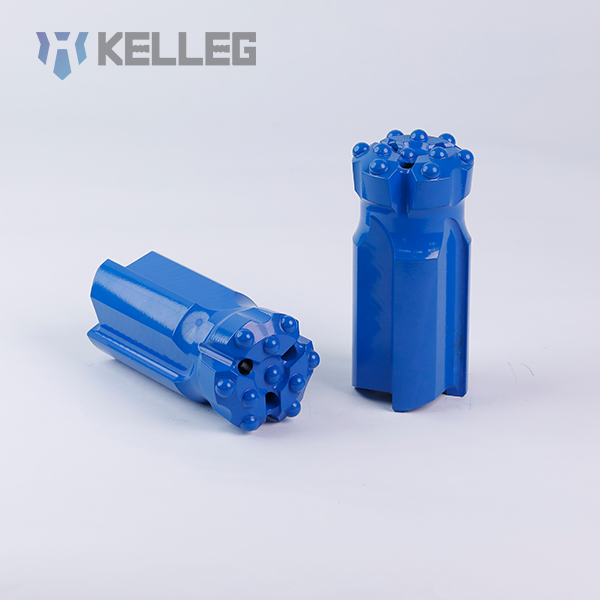

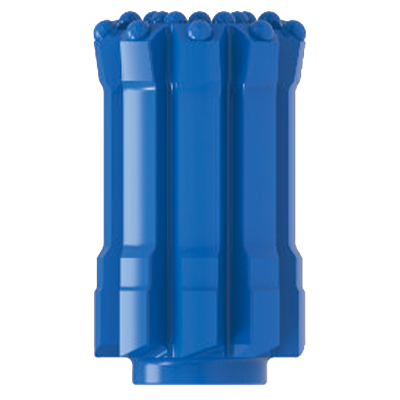

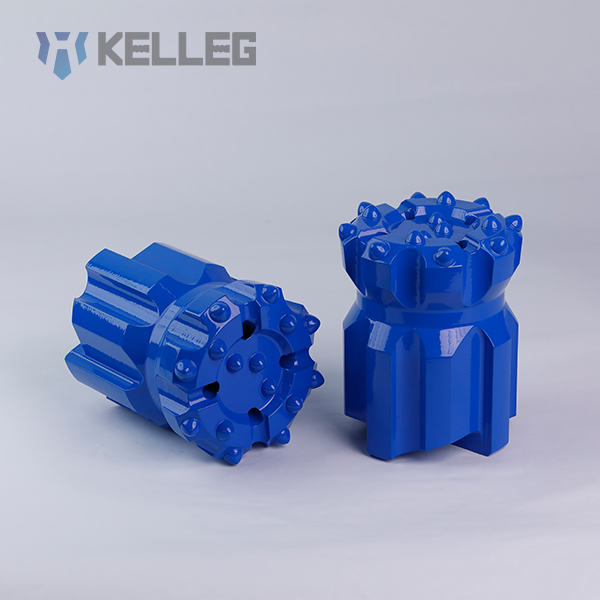

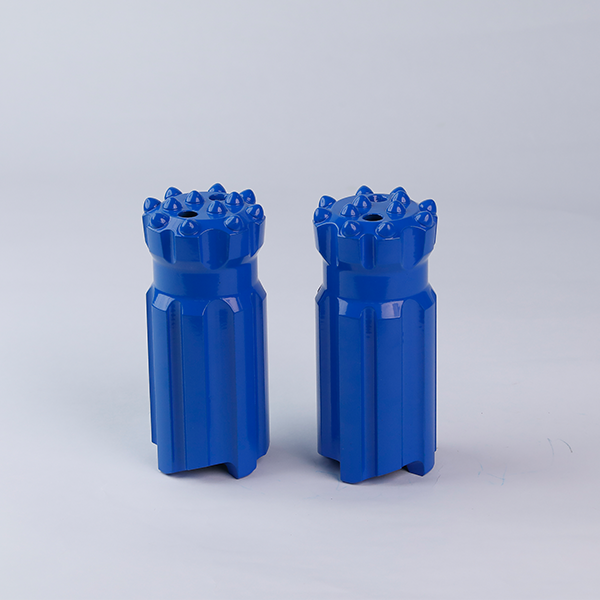

回缩按钮钻头 | 这种钻头采用独特的结构和制造工艺，可提高钻井效率。它通常采用空心设计，有助于排出钻井区域的岩屑，从而降低钻头卡钻的风险。 | 它主要用于松散、破碎的岩层，有助于回收凿岩工具，降低卡钻风险，并提高钻孔的直线度。常用于采矿和隧道开挖项目。 | 45毫米-152毫米 |

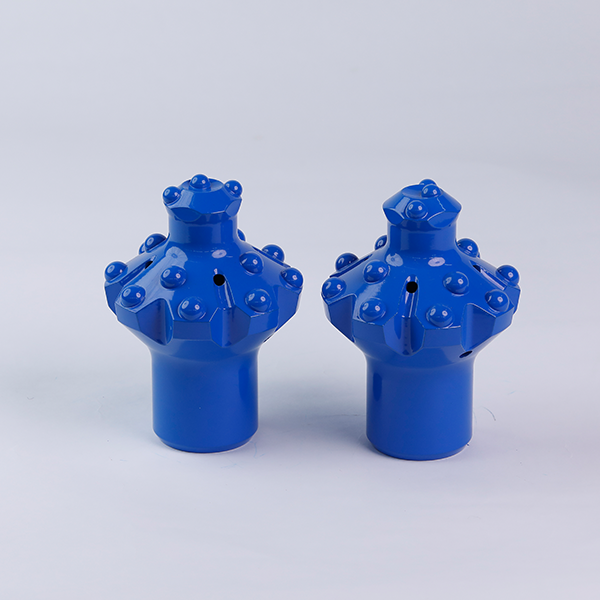

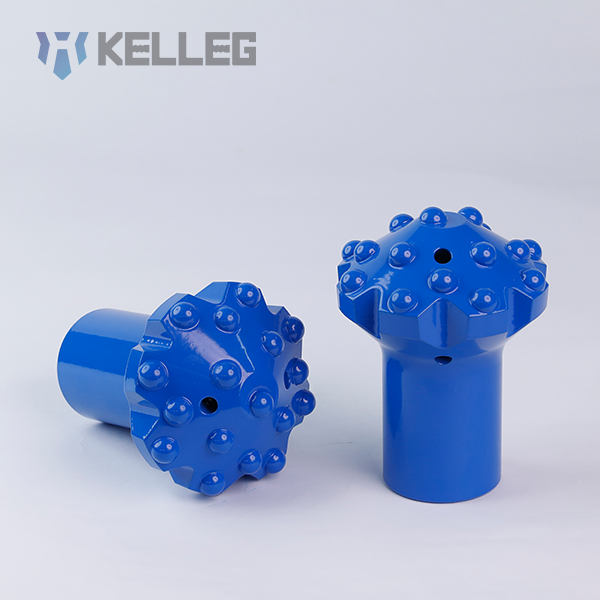

扩孔球齿钻头 | 该工具先钻一个特定深度的导向孔，然后再将孔扩孔至更大的直径。 | 它主要用于深孔钻削中的中心孔的铰孔。 | 64毫米-152毫米 |
更多参数
凿岩钻头分为R螺纹和T螺纹两种，型号包括R25、R28、R32、R38、T38、T45、T51等，可根据不同的工程需求选择不同的产品类型和型号。

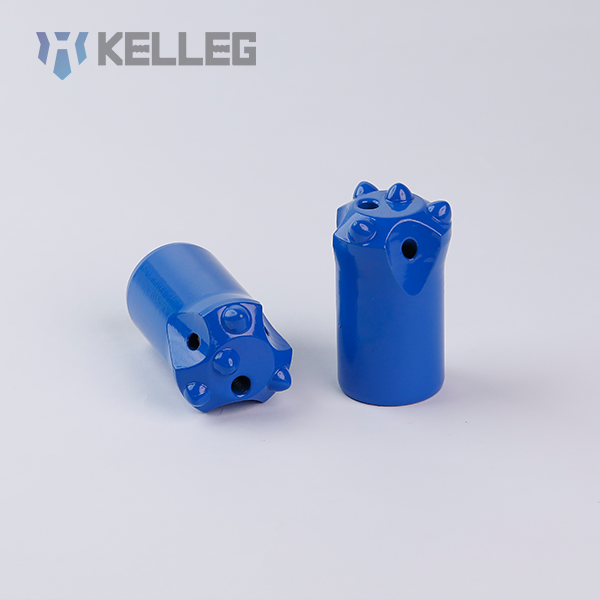

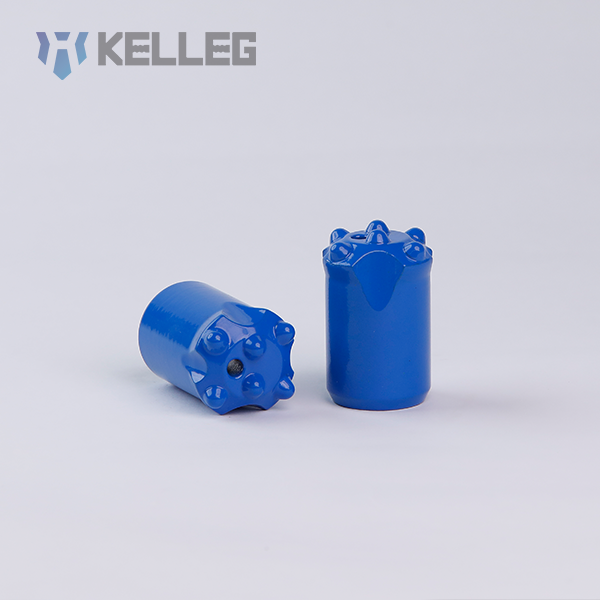

11° Tapered Bit
| Drill Bit | Bit Dia. | No.×Button Dia. | Flushing Hole | Skirt Type | Weight (kg) |
||||
| mm | inch | Front | Gauge | Angle | Front | Side | |||

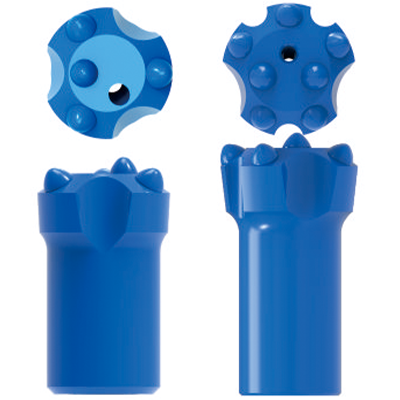

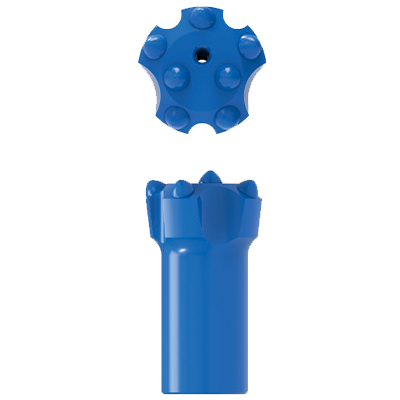

| Button Bit  |
32 | 1 1/4 | 1×8 | 3×8 | 35° | 1 | 2 | Short Skirt | 0.24 |
| 32 | 1 1/4 | 2×7 | 5×7 | 40° | 1 | 1 | 0.24 | ||
| 33 | 1 19/64 | 2×7 | 4×7 | 40° | 1 | 1 | 0.25 | ||
| 34 | 1 11/32 | 2×7 | 4×7 | 40° | 1 | 1 | 0.29 | ||
| 35 | 1 3/8 | 2×7 | 5×7 | 35° | 1 | 1 | 0.33 | ||
| 35 | 1 3/8 | 2×7 | 5×8 | 35° | 1 | 1 | 0.33 | ||
| 36 | 1 27/64 | 1×8 | 3×9 | 40° | 1 | 1 | 0.36 | ||
| 36 | 1 27/64 | 2×7 | 4×7 | 40° | 1 | 1 | 0.36 | ||
| 36 | 1 27/64 | 2×7 | 5×8 | 35° | 1 | 1 | 0.36 | ||
| 38 | 1 1/2 | 1×9 | 3×9 | 40° | 1 | 1 | 0.39 | ||
| 38 | 1 1/2 | 2×8 | 3×9 | 40° | 1 | 1 | 0.39 | ||
| 38 | 1 1/2 | 2×7 | 5×8 | 35° | 1 | 1 | 0.39 | ||
| 38 | 1 1/2 | 2×7 | 5×9 | 35° | 1 | 1 | 0.39 | ||
| 40 | 1 37/64 | 1×9 | 3×9 | 40° | 1 | 1 | 0.40 | ||
| 40 | 1 37/64 | 2×8 | 3×9 | 40° | 1 | 1 | 0.40 | ||
| 40 | 1 37/64 | 2×9 | 3×9 | 40° | 1 | 2 | 0.40 | ||
| 40 | 1 37/64 | 2×7 | 5×9 | 35° | 1 | 1 | 0.40 | ||
| 40 | 1 37/64 | 2×8 | 5×9 | 35° | 1 | 1 | 0.40 | ||
| 41 | 1 5/8 | 2×7 | 5×9 | 35° | 1 | 1 | 0.41 | ||
| 32 | 1 1/4 | 2×7 | 5×7 | 35° | 1 | 1 | Long Skirt | 0.30 | |
| 33 | 1 19/64 | 2×7 | 5×7 | 35° | 1 | 1 | 0.31 | ||
| 33 | 1 19/64 | 2×7 | 6×7 | 40° | 1 | 1 | 0.31 | ||
| 35 | 1 3/8 | 2×7 | 6×7 | 40° | 1 | 1 | 0.35 | ||
| 38 | 1 1/2 | 2×7 | 5×9 | 35° | 1 | 1 | 0.41 | ||
| 41 | 1 5/8 | 2×7 | 5×9 | 35° | 1 | 1 | 0.42 | ||
| 35 | 1 3/8 | 2×7 | 5×9 | 35° | 1 | 1 | 0.38 | ||
| 36 | 1 27/64 | 2×7 | 5×9 | 35° | 1 | 1 | 0.39 | ||
| 38 | 1 1/2 | 2×7 | 5×9 | 35° | 1 | 1 | 0.41 | ||
| 41 | 1 5/8 | 2×7 | 5×9 | 35° | 1 | 1 | 0.42 | ||

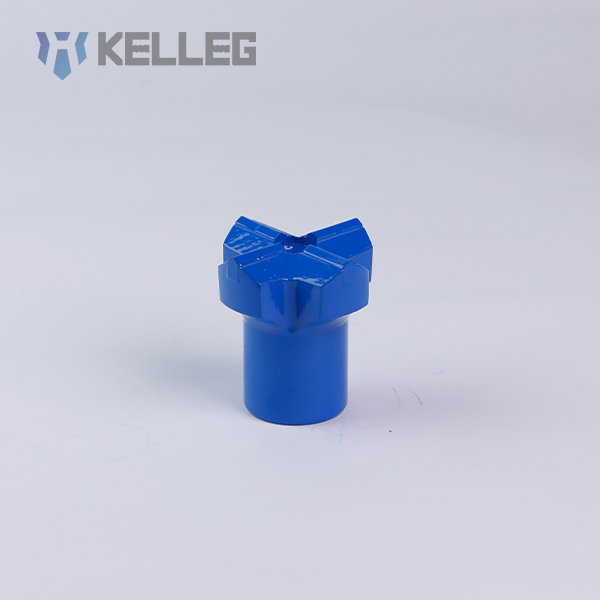

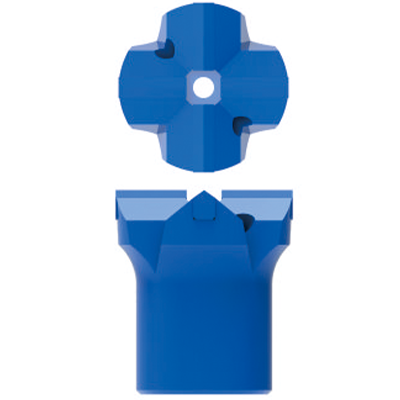

Cross-type Bit |
29 | 1 9/64 | 12×8 | - | 1 | 2 | - | 0.25 | |
| 30 | 1 3/16 | 12×8 | - | 1 | 2 | 0.26 | |||
| 32 | 1 1/4 | 12×8 | - | 1 | 2 | 0.30 | |||
| 33 | 1 19/64 | 12×8 | - | 1 | 2 | 0.32 | |||
| 35 | 1 3/8 | 12×8 | - | 1 | 2 | 0.36 | |||
| 36 | 1 27/64 | 12×8 | - | 1 | 2 | 0.39 | |||
| 38 | 1 1/2 | 12×8 | - | 1 | 2 | 0.43 | |||
| 41 | 1 5/8 | 14×8 | - | 1 | 2 | 0.49 | |||
R32
| Drill Bit | Bit Dia. | No.×Button Dia. | Flushing Hole | Weight (kg) | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | ||

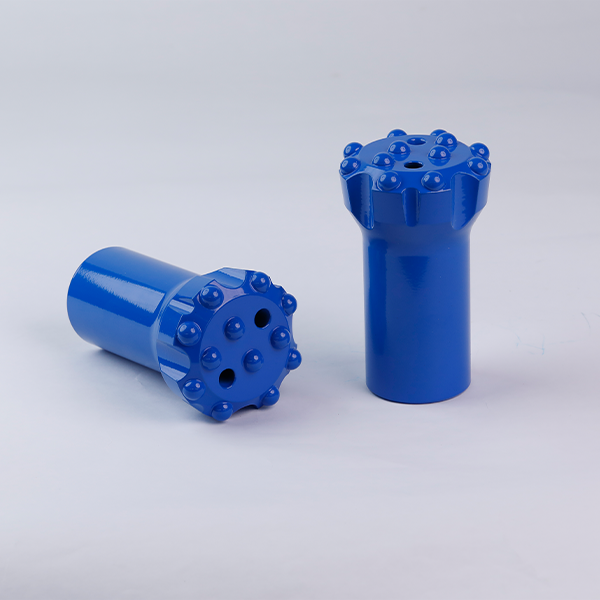

Button Bit |
Spherical Buttons | |||||||
| 41 | 1 5/8 | 2×9 | 4×9 | 35° | 1 | 1 | 0.6 | |
| 41 | 1 5/8 | 2×8 | 5×9 | 35° | 1 | 1 | 0.7 | |
| 43 | 1 11/16 | 2×9 | 5×9 | 35° | 1 | 2 | 0.7 | |
| 43 | 1 11/16 | 2×9 | 5×10 | 35° | 1 | 1 | 0.7 | |
| 43 | 1 11/16 | 2×9 | 6×9 | 40° | 2 | - | 0.7 | |
| 45 | 1 3/4 | 2×9 | 5×11 | 30° | 1 | 1 | 0.8 | |
| 45 | 1 3/4 | 2×9 | 6×10 | 35° | 2 | - | 0.8 | |
| 45 | 1 3/4 | 3×8 | 6×10 | 30° | 3 | - | 0.8 | |
| 48 | 1 7/8 | 2×9 | 5×11 | 35° | 1 | 1 | 0.9 | |
| 48 | 1 7/8 | 2×9 | 6×10 | 40° | 2 | - | 0.9 | |
| 48 | 1 7/8 | 3×8 | 6×10 | 40° | 3 | - | 0.9 | |
| 48 | 1 7/8 | 3×9 | 6×10 | 30° | 3 | - | 0.9 | |
| 51 | 2 | 2×10 | 5×11 | 35° | 1 | 1 | 1.0 | |
| 51 | 2 | 2×10 | 6×10 | 40° | 2 | - | 1.0 | |
| 51 | 2 | 3×9 | 6×10 | 35° | 3 | - | 1.0 | |
| 57 | 2 1/4 | 3×9 | 6×11 | 35° | 3 | - | 1.3 | |
| 64 | 2 1/2 | 3×10,1×10 | 6×11 | 35° | 3 | - | 1.6 | |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.6 | |

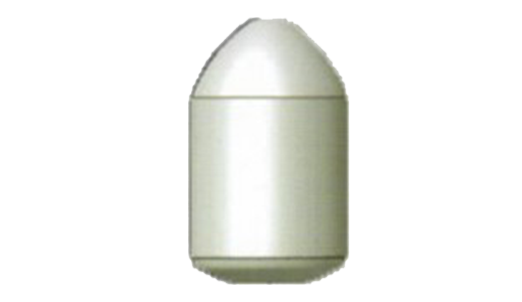

| Parabolic Buttons | ||||||||
| 41 | 1 5/8 | 2×8 | 5×9 | 40° | 1 | 1 | 0.7 | |
| 43 | 1 11/16 | 2×9 | 5×9 | 40° | 1 | 2 | 0.7 | |
| 43 | 1 11/16 | 2×9 | 6×9 | 40° | 2 | - | 0.7 | |
| 43 | 1 11/16 | 3×8 | 6×8 | 40° | 3 | 1 | 0.7 | |
| 45 | 1 3/4 | 2×9 | 5×11 | 30° | 1 | 2 | 0.8 | |
| 45 | 1 3/4 | 2×9 | 6×9 | 40° | 2 | 2 | 0.8 | |
| 45 | 1 3/4 | 3×8 | 6×9 | 40° | 3 | 1 | 0.8 | |
| 48 | 1 7/8 | 2×9 | 5×11 | 35° | 1 | 1 | 0.9 | |
| 48 | 1 7/8 | 2×9 | 6×10 | 40° | 2 | - | 0.9 | |
| 48 | 1 7/8 | 3×8 | 6×10 | 40° | 3 | - | 0.9 | |
| 51 | 2 | 2×10 | 6×10 | 40° | 2 | - | 1.0 | |
| 51 | 2 | 3×9 | 6×10 | 40° | 3 | 1 | 1.0 | |
| 54 | 2 1/8 | 3×9 | 6×10 | 40° | 3 | 1 | 1.0 | |
| 57 | 2 1/4 | 3×9 | 6×11 | 35° | 3 | - | 1.3 | |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | |
| Drill Bit | Bit Dia. | No.×Button Dia. | Flushing Hole | Weight (kg) | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | ||

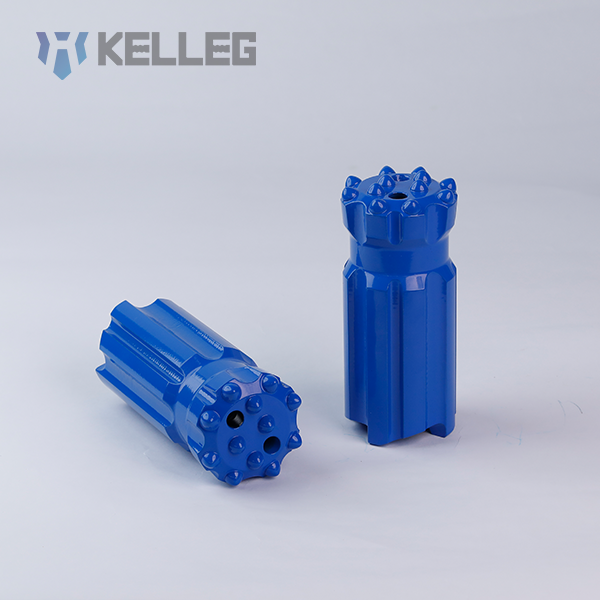

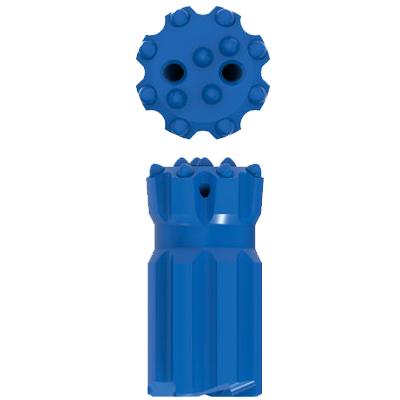

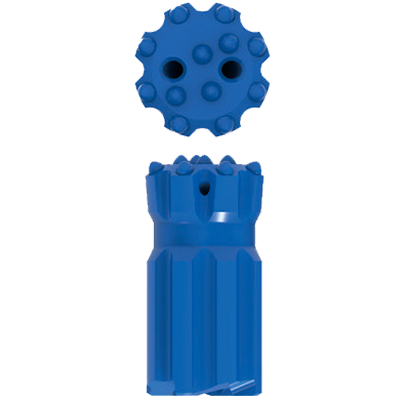

Retrac Button Bit |
Spherical Buttons | |||||||
| 45 | 1 3/4 | 3×8 | 6×9 | 40° | 3 | - | 1.1 | |
| 48 | 1 7/8 | 3×9 | 6×10 | 30° | 3 | - | 1.2 | |
| 51 | 2 | 3×9 | 6×10 | 30° | 3 | - | 1.4 | |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 2.2 | |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 2.2 | |
| 76 | 3 | 4×11,1×11 | 8×11 | 35° | 4 | 1 | 3.5 | |
| Parabolic Buttons | ||||||||
| 45 | 1 3/4 | 3×8 | 6×9 | 40° | 3 | - | 1.1 | |
| 48 | 1 7/8 | 3×9 | 6×10 | 30° | 3 | - | 1.2 | |
| 51 | 2 | 3×9 | 6×10 | 30° | 3 | - | 1.4 | |
| 64 | 2 1/2 | 3×10,1×10 | 6×11 | 35° | 3 | - | 2.2 | |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 2.2 | |
| 76 | 3 | 4×11,1×11 | 8×11 | 35° | 4 | 1 | 3.5 | |

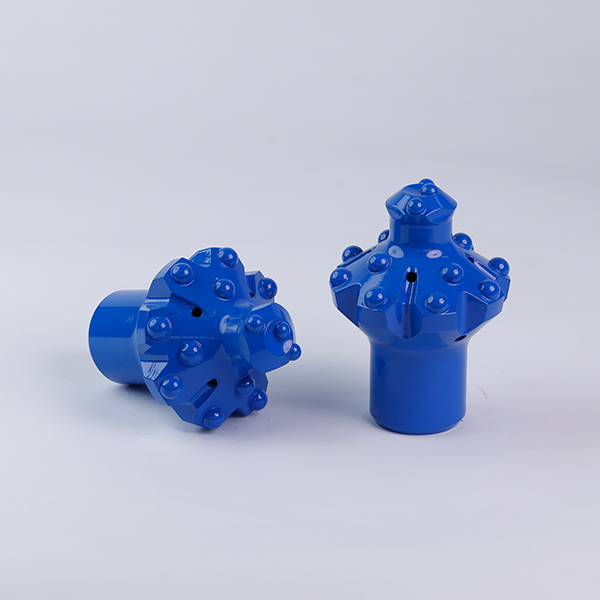

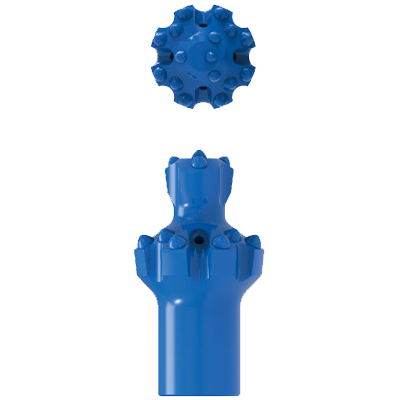

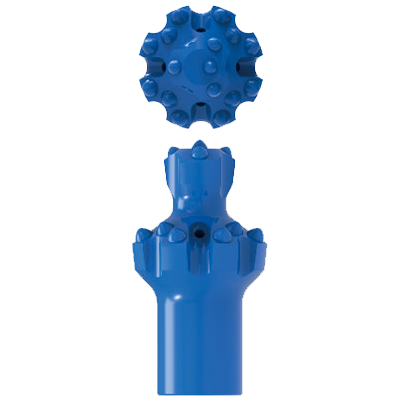

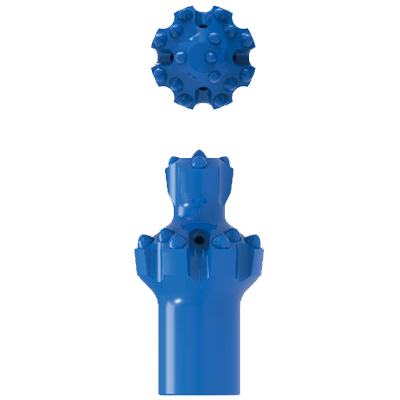

Dome Bit for Reaming |
Spherical Buttons | |||||||
| 76 | 3 | 1×13 | 9×13 | 35° | 3 | 1 | 2.0 | |
| 89 | 3 1/2 | 1×13 | 14×13 | 35° | 2 | 2 | 2.6 | |
| 102 | 4 | 1 ×13 | 16×13 | 35° | 2 | 2 | 3.2 | |
| 127 | 5 | 1×13 | 18×13 | 35° | 3 | 1 | 4.8 | |
| Parabolic Buttons | ||||||||
| 76 | 3 | 1×13 | 9×13 | 35° | 3 | 1 | 2.0 | |
| 89 | 3 1/2 | 1×13 | 14×13 | 35° | 2 | 2 | 2.6 | |
| 102 | 4 | 1×13 | 16×13 | 35° | 2 | 2 | 3.2 | |
| 127 | 5 | 1×13 | 18×13 | 35° | 3 | 1 | 4.8 | |

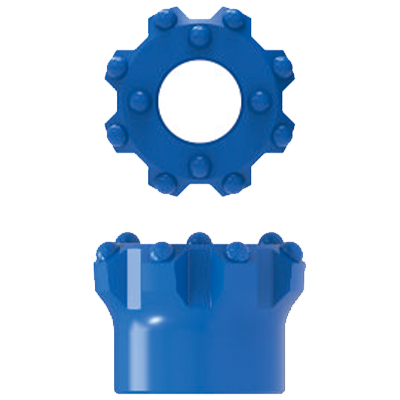

Reaming Bit 6° |
64 | 2 1/2 | 2×10 | 8×9 | 35° | - | - | 0.8 |
| 64 | 2 1/2 | 4×8 | 8×9 | 25° | - | - | 0.8 | |
| 76 | 3 | 2×11 | 8×11 | 35° | - | - | 1.2 | |
| 76 | 3 | 4×10 | 8×10 | 30° | - | - | 1.2 | |
| 89 | 3 1/2 | 4×11 | 8×11 | 35° | - | - | 1.7 | |
| 89 | 3 1/2 | 4×10 | 8×10 | 30° | - | - | 1.7 | |

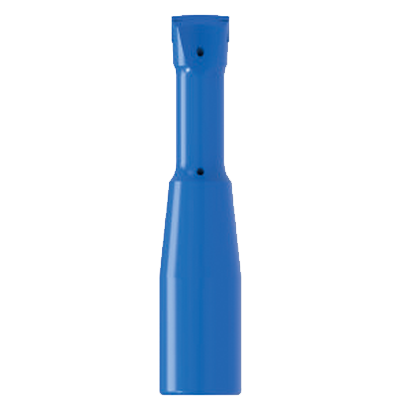

Pilot Adapter 6° |
26 | 1 1/32 | 12×8 | - | - | - | 1.5 | |

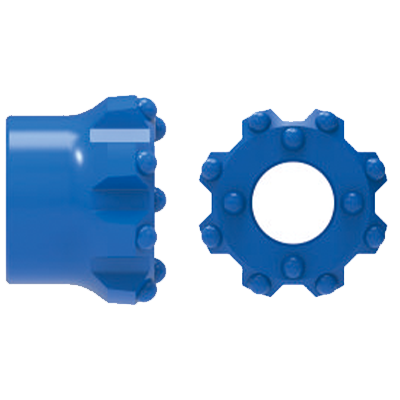

Reaming Bit 12° |
89 | 3 1/2 | 4×10 | 8×12 | 35° | - | - | 1.8 |
| 102 | 4 | 4×12 | 8×12 | 35° | - | - | 2.1 | |
| 127 | 5 | 4×12 | 8×12 | 35° | - | - | 4.0 | |
| 127 | 5 | 4×13 | 8×13 | 35° | - | - | 4.0 | |

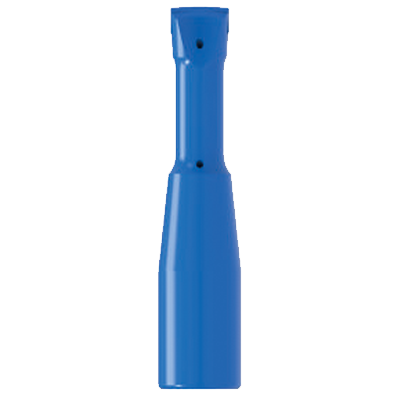

Pilot Adapter 12° |
40 | 1 37/64 | 15×10 | - | - | - | 2.2 | |
Cross-type Bit |
41 | 1 5/8 | 16×10 | - | 1 | 4 | 0.7 | |
| 43 | 1 11/16 | 16×10 | - | 1 | 2 | 0.8 | ||
| 45 | 1 3/4 | 16×10 | - | 1 | 4 | 0.9 | ||
| 48 | 1 7/8 | 16×10 | - | 1 | 4 | 0.9 | ||
| 51 | 2 | 16×10 | - | 1 | 4 | 1.2 | ||
| 57 | 2 1/4 | 16×10 | - | 1 | 4 | 1.3 | ||
| 64 | 2 1/2 | 18×13 | - | 1 | 4 | 1.5 | ||
T38
| Drill Bit | Bit Dia. | No.×Button Dia. | Flushing Hole | Weight (kg) |
||||
| mm | inch | Front | Gauge | Angle | Front | Side | ||
Button Bit |
Spherical Buttons | |||||||
| 64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | - | 1.8 | |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | |
| 64 | 2 1/2 | 3×10,1×10 | 6×11 | 35° | 3 | - | 1.7 | |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | - | 1.9 | |
| 70 | 2 3/4 | 4×10,1×10 | 8×11 | 30° | 4 | - | 1.9 | |
| 70 | 2 3/4 | 3×10,1×10 | 6×12 | 35° | 3 | - | 1.8 | |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.4 | |
| 76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | |
| 76 | 3 | 3×11,1×11 | 6×12 | 35° | 3 | 1 | 2.6 | |
| 76 | 3 | 4×11,1×11 | 8×12 | 35° | 4 | - | 2.6 | |
| 76 | 3 | 4×11,1 ×11 | 8×11 | 40° | 4 | - | 2.6 | |
| 89 | 3 1/2 | 4×13 | 8×13 | 40° | 2 | - | 3.3 | |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | - | 3.3 | |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 3.3 | |
| 89 | 3 1/2 | 3×11,2×11 | 6×13 | 35° | 3 | 1 | 3.3 | |
| 89 | 3 1/2 | 4×11,1×11 | 8×13 | 35° | 4 | - | 3.3 | |
| 89 | 3 1/2 | 4×13,1×13 | 8×13 | 35° | 4 | - | 3.3 | |
| Parabolic Buttons | ||||||||
| 64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | - | 1.8 | |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | |
| 64 | 2 1/2 | 3×10,1×10 | 6×11 | 35° | 3 | - | 1.7 | |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | - | 1.9 | |
| 70 | 2 3/4 | 3×10,1 ×10 | 6×12 | 35° | 3 | - | 1.8 | |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.4 | |
| 76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | |
| 76 | 3 | 3×11,1×11 | 6×13 | 35° | 3 | 1 | 2.6 | |
| 76 | 3 | 4×11,1×11 | 8×12 | 35° | 4 | - | 2.6 | |
| 76 | 3 | 4×11,1 ×11 | 8×11 | 40° | 4 | - | 2.6 | |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | - | 3.3 | |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 3.3 | |
| 89 | 3 1/2 | 3×11,2×11 | 6×13 | 35° | 3 | 1 | 3.3 | |
| 89 | 3 1/2 | 4×11,1×11 | 8×13 | 35° | 4 | - | 3.3 | |
| 89 | 3 1/2 | 4×13,1×13 | 8×13 | 35° | 4 | - | 3.3 | |

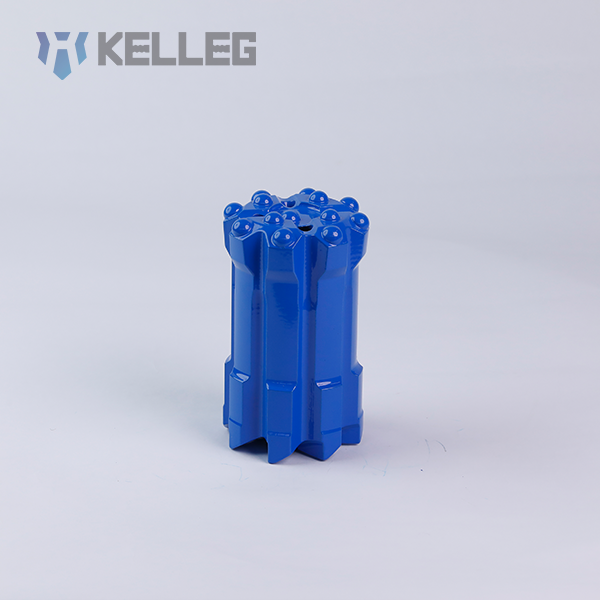

Retrac Button Bit |
Spherical Buttons | |||||||
| 64 | 2 1/2 | 4×10 | 8×10 | 30° | 2 | — | 2.2 | |
| 64 | 2 1/2 | 3×10,1×10 | 6×11 | 35° | 3 | — | 2.2 | |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | — | 2.4 | |
| 70 | 2 3/4 | 3×10,1×10 | 6×13 | 35° | 3 | — | 2.4 | |
| 70 | 2 3/4 | 4×10,1×10 | 8×11 | 35° | 4 | — | 2.4 | |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | — | 3.3 | |
| 76 | 3 | 4×11,1×11 | 8×11 | 35° | 4 | — | 3.3 | |
| 76 | 3 | 4×11, 1×11 | 8×12 | 35° | 4 | — | 3.3 | |
| 89 | 3 1/2 | 4×13 | 8×13 | 40° | 2 | — | 4.8 | |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | — | 4.8 | |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | — | 4.8 | |
| 89 | 3 1/2 | 4×11, 1×11 | 8×13 | 35° | 4 | — | 4.8 | |
| 89 | 3 1/2 | 4×13,1×13 | 8×13 | 35° | 4 | — | 4.8 | |
| Parabolic Buttons | ||||||||
| 64 | 2 1/2 | 4×10 | 8×10 | 30° | 2 | - | 2.2 | |
| 64 | 2 1/2 | 3×10,1×10 | 6×11 | 35° | 3 | - | 2.2 | |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | - | 2.4 | |
| 70 | 2 3/4 | 3×10,1 ×10 | 6×13 | 35° | 3 | - | 2.4 | |
| 70 | 2 3/4 | 4×10,1×10 | 8×11 | 35° | 4 | - | 2.4 | |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 3.3 | |
| 76 | 3 | 4×11, 1 ×11 | 8×11 | 35° | 4 | - | 3.3 | |
| 76 | 3 | 4×11, 1 ×11 | 8×12 | 35° | 4 | - | 3.3 | |
| 89 | 3 1/2 | 4×13 | 8×13 | 40° | 2 | - | 4.8 | |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | - | 4.8 | |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 4.8 | |
| 89 | 3 1/2 | 4×11,1 ×11 | 8×13 | 35° | 4 | - | 4.8 | |
| 89 | 3 1/2 | 4×13,1×13 | 8×13 | 35° | 4 | - | 4.8 | |
| X-type Bit | 64 | 2 1/2 | 25×13 | - | 1 | 2 | 1.9 | |
| 76 | 3 | 25×13 | - | 1 | 2 | 2.5 | ||
| 89 | 3 1/2 | 25×13 | - | 1 | 2 | 2.8 | ||
Dome Bit for Reaming |
Spherical Buttons | |||||||
| 102 | 4 | 1×13 | 16×13 | 35° | 2 | 2 | 3.8 | |
| 127 | 5 | 1×13 | 18×13 | 35° | 1 | 3 | 5.2 | |
| Parabolic Buttons | ||||||||
| 102 | 4 | 1×13 | 16×13 | 35° | 2 | 2 | 3.8 | |
| 127 | 5 | 1×13 | 18×13 | 35° | 1 | 3 | 5.2 | |
ST58
| Drill Bit | Bit Dia. | No.×Button Dia. | Flushing Hole | Weight (kg) |
||||
| mm | inch | Front | Gauge | Angle | Front | Side | ||
Button Bit |
Spherical Buttons | |||||||
| 89 | 3 1/2 | 6×12 | 8×12 | 35° | 2 | 1 | 4.1 | |
| 89 | 3 1/2 | 6×13 | 8×13 | 35° | 2 | 1 | 4.1 | |
| 89 | 3 1/2 | 4×13,1 ×13 | 8×13 | 35° | 4 | — | 4.1 | |
| 89 | 3 1/2 | 4×12,2×12 | 8×12 | 35° | 4 | — | 4.1 | |
| 95 | 3 3/4 | 4×13,1×13 | 8×14 | 35° | 4 | — | 4.6 | |
| 102 | 4 | 6×14 | 8×14 | 35° | 2 | — | 6.0 | |
| 102 | 4 | 6×13 | 8×16 | 35° | 2 | 1 | 6.0 | |
| 115 | 4 1/2 | 6×14 | 8×16 | 35° | 2 | — | 7.0 | |
| Parabolic Buttons | ||||||||
| 89 | 3 1/2 | 6×12 | 8×12 | 35° | 2 | 1 | 4.1 | |
| 89 | 3 1/2 | 6×13 | 8×13 | 35° | 2 | 1 | 4.1 | |
| 89 | 3 1/2 | 4×13,1×13 | 8×13 | 35° | 4 | — | 4.1 | |
| 89 | 3 1/2 | 4×12,2×12 | 8×12 | 35° | 4 | — | 4.1 | |
| 95 | 3 3/4 | 4×13,1 ×13 | 8×14 | 35° | 4 | — | 4.6 | |
| 102 | 4 | 6×14 | 8×14 | 35° | 2 | — | 6.0 | |
| 102 | 4 | 6×13 | 8×16 | 35° | 2 | 1 | 6.0 | |
| 115 | 4 1/2 | 6×14 | 8×16 | 35° | 2 | — | 7.0 | |
Retrac Button Bit |
Spherical Buttons | |||||||
| 89 | 3 1/2 | 6×12 | 8×14 | 35° | 2 | 1 | 5.1 | |
| 89 | 3 1/2 | 4×13,1×13 | 8×13 | 35° | 4 | — | 5.1 | |
| 102 | 4 | 7×12 | 8×14 | 35° | 2 | 1 | 6.5 | |
| 115 | 4 1/2 | 6×14 | 8×16 | 35° | 2 | — | 8.5 | |
| Parabolic Buttons | ||||||||
| 89 | 3 1/2 | 6×12 | 8×14 | 35° | 2 | 1 | 5.1 | |
| 89 | 3 1/2 | 4×13,1×13 | 8×13 | 35° | 4 | — | 5.1 | |
| 102 | 4 | 7×12 | 8×14 | 35° | 2 | 1 | 6.5 | |
| 115 | 4 1/2 | 6×14 | 8×16 | 35° | 2 | — | 8.5 | |
Dome Bit for Reaming |
Spherical Buttons | |||||||
| 152 | 6 | 6×16 | 9×16 | 35° | 3 | — | 13.0 | |
| 152 | 6 | 2×14 | 18×14 | 35° | 3 | 3 | 10.4 | |
| Parabolic Buttons | ||||||||
| 152 | 6 | 6×16 | 9×16 | 35° | 3 | — | 13.0 | |
| 152 | 6 | 2×14 | 18×14 | 35° | 3 | 3 | 10.4 | |
Can't find the parameters you want? Please get in touch with us!
Download Brochure
优势
我们的凿岩钻头经过精心设计，以满足采矿、建筑、石油天然气勘探和采石行业的严格要求。这些工具旨在在最具挑战性的钻孔环境中表现出色，确保最高的性能、耐用性和精度。
高品质材料
采用45CrNiMo1V高性能合金钢制成，具有强度高、韧性好、耐磨性好、耐腐蚀等特点，即使在恶劣的凿岩条件下，也能确保凿岩钻头性能稳定、使用寿命长。

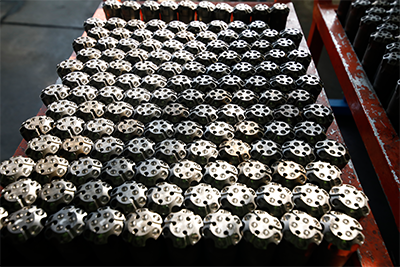

巧妙的设计
·结构设计确保有效的扭矩传递和抵抗冲击载荷。
·优化切削刃，提高钻孔效率。
·适应性强，适用于各种类型的凿岩机。

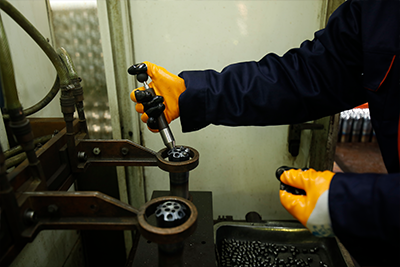

先进的制造工艺
·采用最佳热烧结工艺将合金与钻头体粘合，确保合金与基材之间牢固结合。
·钻头体经过热处理，改善材料的机械性能和微观组织。
·加工工艺成熟，采用先进的数控设备和检测技术，确保产品的精度和一致性。
严格的质量控制
·原材料经过严格测试，符合设计规格。
·生产过程中进行严格的控制和检测，确保产品质量的一致性和稳定性。
·成品经过严格的外观质量、尺寸精度、机械性能检验，确保满足设计要求和客户需求。
凿岩钻头的选择
凿岩钻头钻面的选择
| 位脸 | 应用 | 岩石固结条件 | 钻孔速度 |
扁平的脸 | 适用于所有岩石条件，特别是花岗岩、玄武岩和硬石灰石等恶劣或磨蚀性条件 | 很多 | 慢的 |
下降中心 | 在不太坚固的岩石中钻出更直的孔 | 中间 | 中间 |
半圆顶 | 适用于软岩，例如低硅页岩和石灰岩 | 较少的 | 快速地 |
硬质合金球齿的选择
| 硬质合金球齿 | 图片 | 优势 | 应用 |

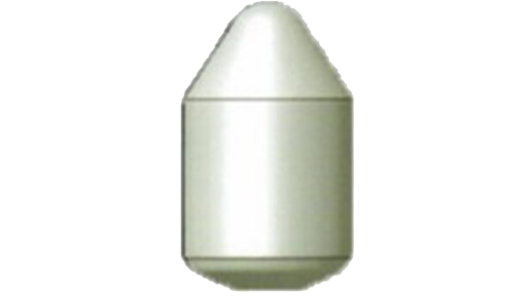

| 锥形按钮 |  | 钻孔效率高 | 中等硬度的岩石，如石灰石、砾石、大理石、黄铁矿等，从 f8 到 f14。 |
| 抛物线按钮 |  | 凿岩机钻头进给速度快，既能保证一定的凿岩效率，又有较好的使用寿命。 | 中等硬度岩石 中等腐蚀性岩层 |

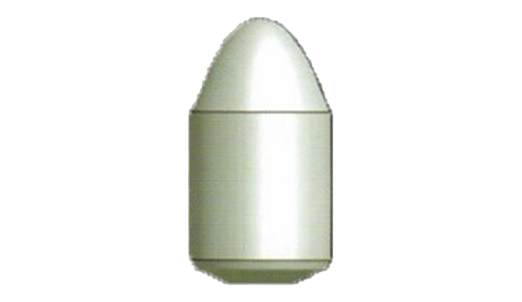

| 椭圆形按钮 |  | 钻凿速度快，凿岩效率高 | f8以下的页岩、粘土岩、砂岩、岩盐等软岩 |
Recommended Products
Welcome to learn more about Kelleg's solutions
